Connection

Configure your connection to the CasparCG server and OSC settings.

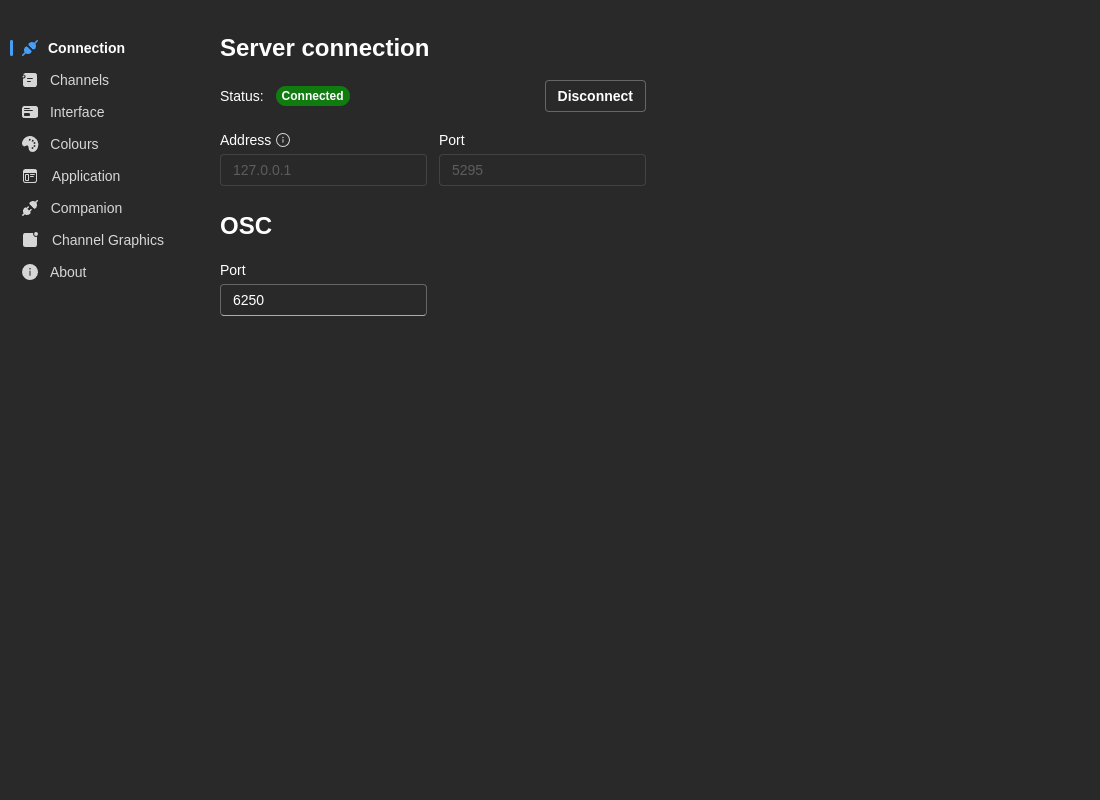

Connection preferences with Server connection and OSC sections

Server Connection​

Server Address

  • Default: CG (hostname)
  • Description: The hostname or IP address of your CasparCG server
  • Examples:
    • localhost - Server running on the same machine
    • CG - Server with hostname "CG" on local network
    • 192.168.1.100 - Direct IP address

Server Port

  • Default: 5250
  • Description: The AMCP port that CasparCG listens on
  • Range: 1-65535
  • Note: This is the standard CasparCG AMCP (Advanced Media Control Protocol) port

Connection Status​

The connection panel displays real-time status:

  • Connected (Green) - Successfully connected to CasparCG server
  • Disconnected (Red) - Not connected to server
  • Reconnecting (Yellow) - Attempting to establish connection
  • Error (Red) - Connection failed with error

Status labels include the server address you're connected to (e.g. Connected to CG:5250), so it's clear at a glance which server is active.

Global connection stripe​

While the app is connecting or reconnecting, an animated stripe appears at the top of the screen as a global indicator — visible from any view, not just the Connection panel. The stripe disappears once the connection is healthy.

Actions:

  • Connect - Establish connection with current settings
  • Disconnect - Close active connection
  • Press Enter - Quick connect when editing connection fields

OSC Settings​

OSC Port

  • Default: 6250
  • Description: Port for OSC (Open Sound Control) communication
  • Range: 1-65535
  • Use Case: For integration with external control surfaces and automation systems
tip

Changes to server address and port are saved when you click Connect. OSC port changes are saved immediately.

Troubleshooting​

Cannot Connect to CasparCG​

  1. Verify CasparCG server is running
  2. Check server address and port in Connection tab
  3. Test network connectivity: ping [server-address]
  4. Ensure firewall allows port 5250 (or your custom port)
  5. Check CasparCG server logs for errors
